YM070038 Cross Reference for SPX HF 13 Element
| MOQ: | 1 |
| Price: | 58 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST070038 |
|---|---|
| Original Filter Brand | SPX |
| Original Model | HF-13 |
| Precision / Residual oil amount | 0.01 μm/0.001 ppm |
| Processing capacity | 16.08 Nm³/min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 1kg |
| Size packaging(cm) | 49.5*14.5*14.5 9# |
| Dimensions(mm) | D:120±1 H:301±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |

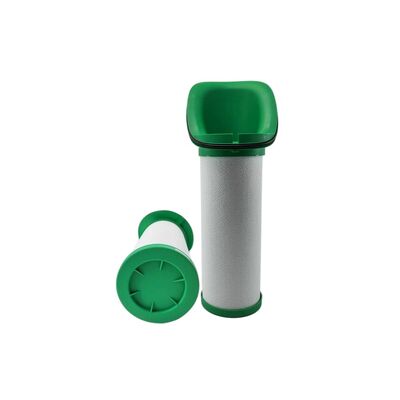

EXOMIST070038 High Flow Coalescing Element - SPX HF-13 Replacement
The EXOMIST070038 is a high flow coalescing filter element engineered to replace SPX HF-13 cartridges in large compressed air systems. Its 120 mm diameter and 301 mm length provide substantial media volume, delivering 16.08 Nm3/min capacity while maintaining oil carryover at 0.01 ppm and particulate removal down to 0.01 micron. This meets ISO8573-1 Class 2 for oil content, suitable for laser cutting, electronics assembly, and sandblasting.
Clean pressure drop stays below 0.01 bar, saving 5-7% compressor energy over the 8000-hour life. Buna-N seals and engineering plastic end caps ensure reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa.
120 mm large diameter media pack boosts flow and dirt capacity
16.08 Nm3/min capacity supports high demand production lines
0.01 ppm oil carryover meets ISO8573-1 Class 2
0.01 micron absolute filtration captures submicron aerosols
301 mm body length provides extended service intervals
Low pressure drop saves 5-7% compressor energy
8000-hour service life reduces maintenance downtime
Buna-N seals compatible with standard lubricants
Engineering plastic end caps resist corrosion
Direct drop-in replacement for SPX HF-13
Laser cutting assist air
Electronics assembly and SMT lines
Sandblasting systems
Point of use filtration
Pneumatic control valves
Laboratory instrument air
24 hour dispatch from Wuxi stock
MOQ 1 piece for sample evaluation
OEM labeling and custom packaging available
Monthly capacity 1000+ units
CE, RoHS, and ISO8573-1 compliant
Test documentation provided on request
- Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
- Shipment:
- By Air (Fedex/DHL)
- By Sea
