EXOMIST070045 0.01 Micron Particulate Removal for Sensitive Equipment
| MOQ: | 1 |
| Price: | 22 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST070045 |
|---|---|
| Original Filter Brand | SPX |
| Original Model | UF-04 |
| Precision / Residual oil amount | 0.01 μm/0.001 ppm |
| Processing capacity | 1.42 Nm³/min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 0.2kg |
| Size packaging(cm) | 18.5*7*7 5# |
| Dimensions(mm) | D:48±1 H:107±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |

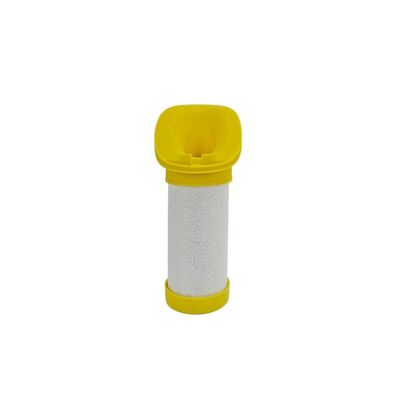

EXOMIST070045 Compact High Precision Coalescing Element - SPX UF-04 Replacement
The EXOMIST070045 is a compact high precision coalescing filter element designed to replace SPX UF-04 cartridges in low to medium flow compressed air systems. Its micro fiberglass media captures oil aerosols and solid particulates down to 0.01 micron while limiting residual oil carryover to 0.001 ppm. This performance meets ISO8573-1 Class 1 for oil content, making it ideal for sensitive laboratory instruments, point of use tools, and small pneumatic devices requiring ultra-clean air.
Rated at 1.42 Nm3/min, this element supports low to medium flow applications such as instrument air, small lasers, and electronic assembly stations. The 48x107 mm dimensions fit standard housings with limited space. Clean pressure drop remains below 0.01 bar, contributing to 5-7% energy savings over the 8000-hour service life. Weight is only 0.2 kg for effortless changeout.
Buna-N seals and engineering plastic end caps ensure reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with common compressor lubricants.
0.01 micron absolute filtration captures submicron oil aerosols
0.001 ppm residual oil meets ISO8573-1 Class 1 for critical air
Compact 48x107 mm size fits tight spaces and small housings
1.42 Nm3/min flow capacity for low to medium flow instruments
0.2 kg lightweight design enables quick one-hand changeout
Microglass media resists moisture and maintains efficiency
Low pressure drop saves 5-7% compressor energy
8000-hour service life reduces maintenance frequency
Buna-N seals compatible with standard lubricants
Engineering plastic end caps prevent corrosion
Laboratory instrument air and analytical equipment
Point of use filtration for electronics assembly
Small laser cutting systems with low flow assist air
Pneumatic control valves and actuators
Dental and medical air supply systems
Test benches and calibration equipment
24 hour dispatch from Wuxi stock
MOQ 1 piece for sample evaluation
OEM labeling and custom packaging available
Monthly capacity 1000+ units
CE, RoHS, and ISO8573-1 compliant
Test documentation provided on request
- Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
- Shipment:
- By Air (Fedex/DHL)
- By Sea
