SPX SF-07 Cross Reference for 62mm Standard Housings
| MOQ: | 1 |
| Price: | 29 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST070005 |
|---|---|
| Original Filter Brand | SPX |
| Original Model | SF-07 |
| Precision / Residual oil amount | 3 μm/5 ppm |
| Processing capacity | 2.9 Nm³/min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 0.25kg |
| Size packaging(cm) | 19*8.5*8.5 6# |
| Dimensions(mm) | D:48±1 H:85±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |

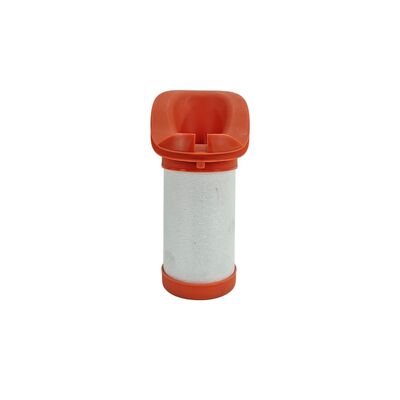

EXOMIST070005 General Purpose Coalescing Element - SPX SF-07 Replacement
The EXOMIST070005 is a general purpose coalescing filter element designed to replace SPX SF-07 cartridges in utility compressed air systems. This 3 micron rated filter provides cost-effective removal of oil aerosols and solid particles, making it ideal for applications where ultra-high purity is not required but dependable air quality is essential.
The micro fiberglass media captures particles down to 3 micron while limiting residual oil carryover to 5 ppm. This meets ISO8573-1 Class 3 for oil content, suitable for workshop air, pneumatic tools, laser cutting pre-filtration, electronics assembly, and sandblasting systems. It offers a practical balance between filtration performance and operating economy.
Rated at 2.9 Nm3/min, this element supports medium flow industrial applications. The compact 62x112 mm dimensions fit standard housings with limited space. Clean pressure drop remains below 0.01 bar, contributing to 5-7% energy savings over the 8000-hour service life. Weight is only 0.25 kg for effortless changeout.
Buna-N seals and engineering plastic end caps ensure reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with common compressor lubricants.
3 micron rating delivers cost-effective general purpose filtration
5 ppm oil carryover meets utility air quality requirements
Compact 62x112 mm size fits standard medium flow housings
2.9 Nm3/min flow capacity supports multiple pneumatic tools
0.25 kg lightweight design enables quick one-hand changeout
Microglass media resists moisture and maintains efficiency
Low pressure drop saves 5-7% compressor energy
8000-hour service life reduces maintenance frequency
Buna-N seals compatible with standard lubricants
Engineering plastic end caps prevent corrosion
Laser cutting pre-filtration for assist air
Electronics assembly and SMT lines
Sandblasting systems
General workshop compressed air
Pneumatic tools and blow guns
Utility air distribution networks
24 hour dispatch from Wuxi stock
MOQ 1 piece for sample evaluation
OEM labeling and custom packaging available
Monthly capacity 1000+ units
CE, RoHS, and ISO8573-1 compliant
Test documentation provided on request
