A-51140 Replacement Carbon Element with Buna-N Seals YM047069
| MOQ: | 1 |
| Price: | 38 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST047069 |
|---|---|
| Original Filter Brand | Omega |
| Original Model | A-51140 |
| Precision / Residual oil amount | 0.01μm / 0.003 ppm |
| Processing capacity | 36.0 Nm³ / min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 1.9kg |
| Size packaging(cm) | 62*16.5*16.5 2424 2 # |
| Dimensions(mm) | D:140±1 H:510±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |

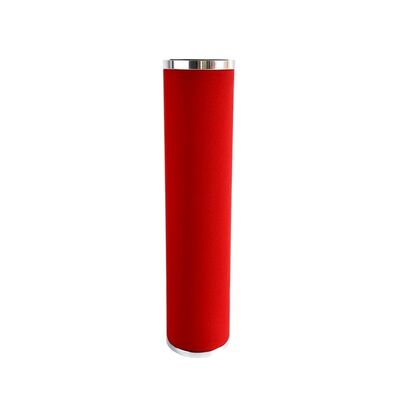

EXOMIST047069 Mega Capacity Activated Carbon Element - Omega A-51140 Replacement
The EXOMIST047069 is the largest activated carbon filter element in the Omega A series, engineered to replace A-51140 cartridges in the biggest central compressed air systems. With a 140 mm diameter and 510 mm length, it houses the highest carbon volume for maximum adsorption capacity. This element targets oil vapor, hydrocarbon gases, and odors, reducing residual oil vapor to 0.003 ppm and capturing submicron particles down to 0.01 micron. It meets ISO8573-1 Class 1 for oil vapor, ideal for vapor-sensitive processes.
Rated at 36.0 Nm3/min, this element serves the highest flow demands in large plants, central compressor rooms, and multi-building air networks. Clean pressure drop remains below 0.01 bar, delivering 5-7% energy savings over the 8000-hour service life. Weight is 1.9 kg. The 140x510 mm dimensions fit standard deep vessels with large seal diameters.
Buna-N seals and engineering plastic end caps ensure reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with all common compressor lubricants.
Largest carbon volume in series for longest adsorption life
36.0 Nm3/min highest flow capacity for central plant systems
0.003 ppm vapor carryover meets strictest purity standards
140x510 mm heavy duty element fits large deep vessels
1.9 kg robust construction for continuous high pressure duty
Activated carbon adsorbs vapor and hydrocarbons, not just liquids
Low pressure drop saves 5-7% compressor energy
8000-hour rating extends maintenance intervals
Buna-N seals resist oil and humidity degradation
Seamless bonding prevents bypass and channeling
Central compressor station main headers
Largest manufacturing plant air distribution
Semiconductor and pharmaceutical clean air supply
Laser cutting assist air requiring zero vapor
VOC abatement pre-filtration
Food and beverage odor-free compressed air
24-hour dispatch from Wuxi stock
MOQ 1 piece for trial
OEM labeling and custom packaging
Monthly capacity 1000+ units
CE, RoHS, ISO8573-1 compliant
Test reports available
- Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
