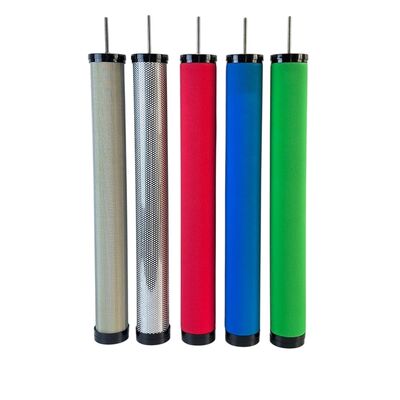

EXOMIST002029 8000 Hour Element for Central Air Stations
| MOQ: | 1 |
| Price: | 15 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST002029 |
|---|---|
| Original Filter Brand | Hankison |
| Original Model | E5-44 |
| Precision / Residual oil amount | 0.01 µm / 0.01 ppm |
| Processing capacity | 18.0Nm³ / min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 1.45kg |
| Size packaging(cm) | 79*9.5*9.5 E- 44 # |
| Dimensions(mm) | D:83±1 H:665±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |
EXOMIST002029 Tallest Coalescing Element – Hankison E5-44 Replacement
The EXOMIST002029 is the tallest coalescing filter element in the Hankison E5 series, standing 665 mm tall with an 83 mm outer diameter. This extra-long profile is designed for deep filter vessels in central air stations serving large manufacturing facilities. The extended length packs substantially more micro glass fiber media than standard cartridges, enabling the highest flow capacity and dirt holding in the product family.
Rated at 18.0 Nm3/min, this element supports the highest air volumes in the E5 line while maintaining 0.01 ppm oil carryover and 0.01 micron particulate removal. This performance meets ISO8573-1 Class 2 requirements, suitable for large-scale automotive plants, aerospace facilities, and high-production laser cutting operations.
The coalescing media captures liquid oil and water aerosols through impaction and diffusion on microglass fibers, with collected fluids draining to the housing sump. Clean pressure drop stays below 0.01 bar, delivering 5-7% energy savings over the 8000-hour rated life. The 1.45 kg weight reflects robust construction for high-pressure, high-flow environments.
Buna-N seals and engineering plastic end caps provide reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with all standard compressor lubricants.
- 665 mm overall height maximizes media volume for longest service intervals
- 18.0 Nm3/min capacity supports largest compressed air networks
- 83 mm diameter fits standard deep vessel housings
- 0.01 ppm oil carryover protects sensitive downstream equipment
- 1.45 kg construction withstands high pressure and vibration
- Microglass depth media maintains efficiency throughout service life
- Low initial pressure drop reduces compressor energy consumption
- Coalescing design removes both oil and water simultaneously
- Buna-N seals resist degradation from synthetic lubricants
- Seamless end cap bonding prevents bypass leakage
- Central air headers in large automotive and aerospace plants
- High-flow laser cutting systems with multiple cutting heads
- Main air supply for heavy equipment sandblasting operations
- Pre-filtration for large desiccant dryer systems
- Pharmaceutical production lines with high air demand
- Power generation facility instrument air systems
- 24-hour dispatch from Wuxi stock
- MOQ 1 piece for evaluation orders
- OEM labeling and custom packaging available
- Monthly capacity exceeds 1000 units
- CE, RoHS, and ISO8573-1 certified
- Test documentation included with shipments
- Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
- Shipment:
- By Air (Fedex/DHL)
- By Sea
