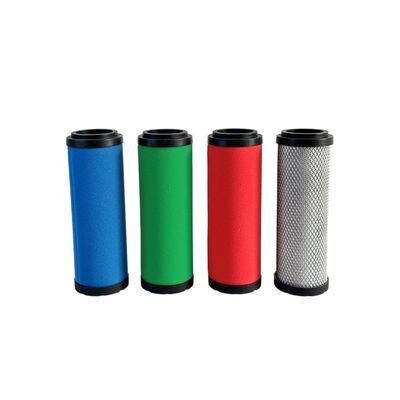

A-51090 Replacement Carbon Cartridge with Buna-N Seals
| MOQ: | 1 |
| Price: | 22 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST047067 |
|---|---|
| Original Filter Brand | Omega |
| Original Model | A-51090 |
| Precision / Residual oil amount | 0.01μm / 0.003 ppm |
| Processing capacity | 16.6 Nm³ / min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 1.15 kg |
| Size packaging(cm) | 57*9.5*9.5 75 # |
| Dimensions(mm) | D:90±1 H:510±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |
EXOMIST047067 High Capacity Activated Carbon Element – Omega A-51090 Replacement
The EXOMIST047067 is a high capacity activated carbon filter element engineered to replace Omega A-51090 cartridges in large compressed air systems. Unlike coalescing filters that remove liquid oil aerosols, this activated carbon cartridge adsorbs oil vapor, hydrocarbon gases, and unpleasant odors, delivering ultrapure air for critical applications where even trace vapor cannot be tolerated.
The activated carbon depth media provides exceptional adsorption capacity, reducing oil vapor content to 0.003 ppm while capturing submicron solid particles down to 0.01 micron. This performance meets ISO8573-1 Class 1 for oil vapor, suitable for laser optics protection, semiconductor manufacturing, pharmaceutical production, and other vapor-sensitive processes.
Rated at 16.6 Nm3/min, this element serves central air headers and large plant distribution systems. The 90x510 mm dimensions fit standard deep housings with high volume flow. Clean pressure drop stays below 0.01 bar, contributing to 5-7% energy savings over the 8000-hour service life. The 1.15 kg weight reflects substantial carbon fill volume for extended adsorption capacity.
Buna-N seals and engineering plastic end caps provide reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with all common compressor lubricants.
Activated carbon bed adsorbs oil vapor and hydrocarbons, not just liquid aerosols
0.003 ppm vapor carryover meets highest purity requirements
510 mm long body provides maximum carbon volume for long service
16.6 Nm3/min capacity supports large central air systems
90 mm diameter fits standard deep housings
Low pressure drop saves 5-7% compressor energy
8000-hour rating extends change intervals in vapor-laden systems
Buna-N seals resist oil degradation and high humidity
Engineering plastic end caps are corrosion-proof and lightweight
Seamless bonding prevents bypass and channeling
Laser cutting assist air requiring oil-vapor-free optics protection
Semiconductor cleanroom air supply with strict vapor limits
Pharmaceutical production lines requiring odor-free compressed air
Central plant air headers serving multiple vapor-sensitive zones
Food and beverage processing air with taste/odor removal needs
Pre-filtration for catalytic converters and VOC abatement systems
24-hour dispatch from Wuxi stock
MOQ 1 piece for trial evaluation
OEM labeling and custom packaging available
Monthly capacity exceeds 1000 units
CE, RoHS, and ISO8573-1 compliant
Test reports supplied upon request
