EXOMIST047024 1 Micron Particulate Removal for Large Factories
| MOQ: | 1 |
| Price: | 22 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST047024 |
|---|---|
| Original Filter Brand | FLOTECH |
| Original Model | R-50075 |
| Precision / Residual oil amount | 1μm / 1 ppm |
| Processing capacity | 13.0 Nm³ / min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 0.85 kg |
| Size packaging(cm) | 57*9.5*9.5 75 # |
| Dimensions(mm) | D:75±1 H:505±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |

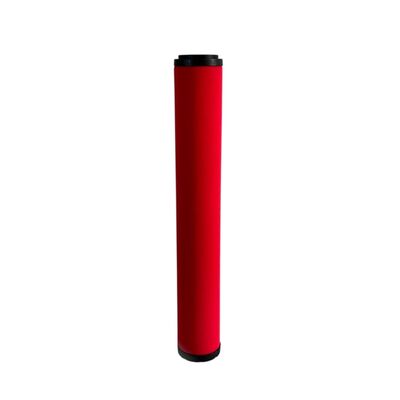

EXOMIST047024 Tallest Coalescing Element – Flotech R-50075 Replacement
The EXOMIST047024 is the tallest coalescing filter element in the R series family, engineered to replace Flotech R-50075 cartridges in large central compressed air systems. Standing 505 mm tall with a 75 mm diameter, this element delivers maximum media volume for the highest flow capacity in the product line, serving central compressor stations and main plant air headers.
The micro glass fiber media captures oil aerosols and solid particles down to 1 micron while limiting residual oil carryover to 1 ppm. This meets ISO8573-1 Class 3 requirements, suitable for large scale factory air distribution, multi-building plant networks, and heavy industrial applications requiring high volume dependable coarse filtration.
Rated at 13.0 Nm3/min, this element delivers the highest flow in the R series, serving the largest production zones and most demanding industrial environments. The extended 505 mm body provides maximum media area for highest dirt holding capacity, enabling longest change intervals in dusty and continuous operation conditions. Clean pressure drop stays below 0.01 bar, contributing to 5-7% energy savings over the 8000-hour service life. The 0.85 kg weight reflects robust construction for high flow, high pressure, and continuous duty.
Buna-N seals and engineering plastic end caps provide reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with all common compressor lubricants. The 75 mm diameter fits standard large housings found in central compressor rooms and main distribution headers.
- 505 mm tallest body delivers maximum media volume in R series
- 13.0 Nm3/min highest flow capacity supports largest plants
- 75 mm diameter fits standard large housings
- 1 micron rating delivers cost-effective coarse filtration
- 1 ppm oil carryover protects downstream pneumatic networks
- 0.85 kg robust build withstands high pressure continuous duty
- Extended length maximizes dirt holding for longest intervals
- Low initial resistance cuts energy consumption 5-7%
- Microglass media resists moisture and maintains efficiency
- Coalescing action removes both oil and water simultaneously
- Central compressor station main air headers
- Largest manufacturing plant air distribution networks
- Multi-building factory compressed air systems
- Heavy industrial pneumatic equipment supply
- High volume desiccant dryer pre-filtration
- Automotive and aerospace plant air systems
- 24-hour dispatch from Wuxi stock
- MOQ 1 piece for trial evaluation
- OEM labeling and custom packaging available
- Monthly capacity exceeds 1000 units
- CE, RoHS, and ISO8573-1 compliant
- Test documentation supplied upon request
- Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
