R-22075 Replacement with Buna-N Seals YM047022 Ref
| MOQ: | 1 |
| Price: | 15 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST047022 |
|---|---|
| Original Filter Brand | FLOTECH |
| Original Model | R-22075 |
| Precision / Residual oil amount | 1μm / 1 ppm |
| Processing capacity | 5.58 Nm³ / min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 0.4 kg |
| Size packaging(cm) | 29.5*8.5*8.5 19 # |
| Dimensions(mm) | D:75±1 H:225±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |

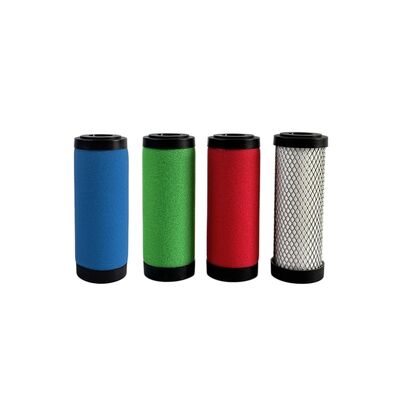

EXOMIST047022 Deep Body Coalescing Element – Flotech R-22075 Replacement
The EXOMIST047022 is a deep body coalescing filter element engineered to replace Flotech R-22075 cartridges in mid-large compressed air systems. At 225 mm tall with a 75 mm diameter, this element offers generous media volume for applications requiring extended service intervals and reliable coarse filtration in factory air distribution networks.
The micro glass fiber media captures oil aerosols and solid particles down to 1 micron while limiting residual oil carryover to 1 ppm. This meets ISO8573-1 Class 3 requirements, suitable for plant air distribution, multi-station workshop supply, pneumatic networks, and general industrial applications where high precision filtration is not required.
Rated at 5.58 Nm3/min, this element supports mid-large flow workshop applications serving multiple workstations or equipment. The extended 225 mm body provides significantly more media area than standard 100-150 mm cartridges, enabling longer change intervals and lower maintenance frequency. Clean pressure drop stays below 0.01 bar, contributing to 5-7% energy savings over the 8000-hour service life. The 0.4 kg weight enables quick, tool-free cartridge replacement.
Buna-N seals and engineering plastic end caps provide reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with all common compressor lubricants. The 75 mm diameter fits standard mid-large housings found in central compressor rooms and main plant air headers.
- 225 mm extended body maximizes media volume for long service life
- 5.58 Nm3/min capacity supports multi-station workshop supply
- 75 mm diameter fits standard mid-large housings
- 1 micron rating delivers cost-effective plant air quality
- 1 ppm oil carryover protects downstream pneumatic equipment
- Deep bed design provides higher dirt holding capacity
- 0.4 kg balanced weight enables one-hand changeout
- Low initial resistance cuts energy consumption 5-7%
- Microglass media resists moisture and maintains efficiency
- Coalescing action removes both oil and water simultaneously
- Mid-large factory air distribution networks
- Multi-station workshop compressed air supply
- Pre-filtration for refrigerated and desiccant dryers
- Manufacturing plant main air headers
- Automotive assembly line air systems
- General industrial pneumatic equipment
- Mid-large factory air distribution networks
- Multi-station workshop compressed air supply
- Pre-filtration for refrigerated and desiccant dryers
- Manufacturing plant main air headers
- Automotive assembly line air systems
- General industrial pneumatic equipment
- Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
- Shipment:
- By Air (Fedex/DHL)
- By Sea
