R-14050 Replacement with Buna-N Seals YM047020 Ref
| MOQ: | 1 |
| Price: | 9 USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST047020 |
|---|---|
| Original Filter Brand | Omega |
| Original Model | R-14050 |
| Precision / Residual oil amount | 1μm / 1 ppm |
| Processing capacity | 2.0 Nm³ / min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 0.25 kg |
| Size packaging(cm) | 17*6*6 S9# |
| Dimensions(mm) | D:51±1 H:140±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |

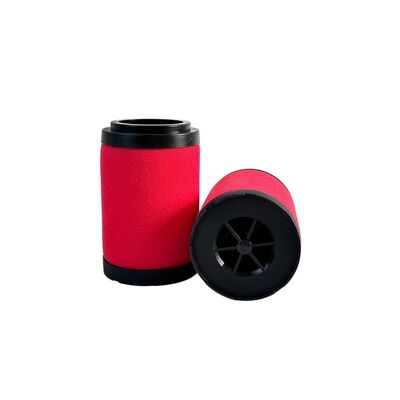

EXOMIST047020 Deep Body Coalescing Element – Omega R-14050 Replacement
The EXOMIST047020 is a deep body coalescing filter element engineered to replace Omega R-14050 cartridges in general industrial compressed air systems. At 140 mm tall with a 51 mm diameter, this element offers extended media depth within a narrow profile, making it ideal for applications where housing diameter is limited but vertical clearance allows for longer cartridges.
The micro glass fiber media captures oil aerosols and solid particles down to 1 micron while limiting residual oil carryover to 1 ppm. This meets ISO8573-1 Class 3 requirements, suitable for pneumatic tools, factory air distribution, general plant air, and equipment where ultra-high purity is not specified.
Rated at 2.0 Nm3/min, this element supports mid flow workshop applications and small to medium compressor installations. The extended 140 mm body provides more media area than standard 60-70 mm cartridges, enabling longer service intervals between changeouts. Clean pressure drop stays below 0.01 bar, contributing to 5-7% energy savings over the 8000-hour service life. The 0.25 kg weight enables quick, tool-free cartridge replacement.
Buna-N seals and engineering plastic end caps provide reliable operation from 1.5 to 80 deg C at pressures up to 2.0 MPa, compatible with all common compressor lubricants.
- 140 mm extended body maximizes media volume in narrow 51mm diameter
- 1 micron rating delivers cost-effective workshop air quality
- 1 ppm oil carryover protects pneumatic tools from wear and sticking
- 2.0 Nm3/min capacity supports mid flow workshop demands
- Deep bed design provides higher dirt holding capacity
- 0.25 kg lightweight enables one-hand changeout
- Low initial resistance cuts energy consumption 5-7%
- Microglass media resists moisture and maintains efficiency
- Coalescing action removes both oil and water simultaneously
- Seamless end cap bonding prevents bypass leakage
- Mid flow workshop compressed air distribution
- Pneumatic tool networks in manufacturing plants
- Pre-filtration for refrigerated air dryers
- Automotive service bay air supplies
- General factory air for blow-off and cleaning
- Small to medium compressor installations
- 24-hour dispatch from Wuxi stock
- MOQ 1 piece for trial evaluation
- OEM labeling and custom packaging available
- Monthly capacity exceeds 1000 units
- CE, RoHS, and ISO8573-1 compliant
- Test documentation supplied upon request
- Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
- Shipment:
- By Air (Fedex/DHL)
- By Sea
