LFA150 OEM Replacement Element for Central Plant Pneumatic Networks
| MOQ: | 1 |
| Price: | 28USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST063015 |
|---|---|
| Original Filter Brand | YUKA |
| Original Model9 | LFA150 |
| Precision / Residual oil amount | 25 μm/5 ppm |
| Processing capacity | 41.0 Nm³/min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 1.85kg |
| Size packaging(cm) | 74*13*13 K620# |
| Dimensions(mm) | D:126±1 H:620±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |

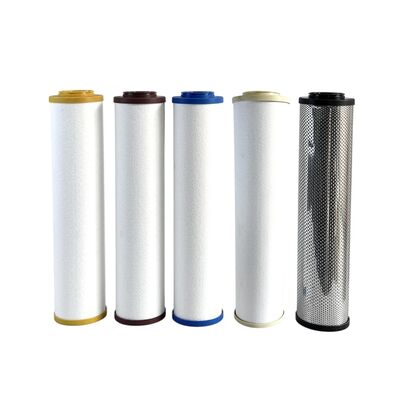

Giant High Flow Coarse Pre Filter Element - Model LFA150
The LFA150 is the largest and highest flow coarse pre filter in the YUKA LFA series, engineered for central compressed air systems with extreme volume demands. Its massive 126 mm diameter and 620 mm height pack the greatest volume of micro fiberglass depth media, capturing solid contaminants down to 25 microns including rust, scale, and dust, while reducing residual oil to 5 ppm. This element is built for main plant headers serving entire industrial complexes.
Rated at 41.0 Nm3/min, this element supports mega manufacturing facilities, multiple high consumption laser cutting tables across production halls, large electronics assembly campuses, and heavy sandblasting systems running continuous shifts. Clean pressure drop remains ≤0.01 bar, delivering 5-7% energy savings over the 8000 hour service life. Weight is 1.85 kg.
The LFA150 requires filter housings with sufficient clearance for its 620 mm height. Engineering plastic end caps and Buna-N seals ensure reliable operation from 1.5 to 80°C and pressures up to 2.0 MPa.
- 25 micron coarse filtration - Traps rust scale and large debris
- 5 ppm oil mist reduction - Acceptable for general industrial air
- Giant micro fiberglass media - Maximum dirt holding capacity
- 41.0 Nm3 min flow rate - Highest in LFA series, supports mega plants
- 0.01 bar pressure drop - Saves 5-7% compressor energy over 8000 hours
- 8000 hour service life - Longest intervals for critical infrastructure
- Massive 126x620 mm dimensions - Lowest face velocity in LFA series
- 1.85 kg weight - Substantial media volume for extreme service
- Buna-N seals - Reliable from 1.5 to 80°C up to 2.0 MPa
- Laser cutting central assist air - Coarse pre filtration for multiple heads
- Electronics SMT assembly lines - Protects vacuum generators from debris
- Sandblasting heavy systems - Removes scale and rust before nozzle
- Industrial pneumatic networks - First stage for main plant air
- High volume point of use - Pre clean for high consumption equipment
- 24 hour dispatch - Stock items ready for immediate shipment
- Low MOQ - One piece accepted for trial and evaluation
- OEM drawing service - Custom end caps seals or packaging available
- Factory direct pricing - Competitive for bulk orders of 1000+ pieces monthly
- Full compliance - CE RoHS and ISO8573-1 certification provided
- Package: Plastic bag inside, Paper box outside. Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
