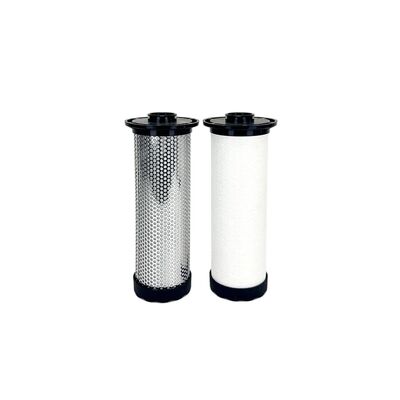

24242190 Replacement Element 77x229 mm for Sandblasting Heavy Duty Applications
| MOQ: | 1 |
| Price: | 22USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST067059 |
|---|---|
| Original Filter Brand | INGERSOLL-2424 |
| Original Model9 | 24242190 |
| Precision / Residual oil amount | 1μm |
| Processing capacity | 6.7 Nm³ / min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Micro fiberglass |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 0.45 kg |
| Size packaging(cm) | 27*9*9 70 # |
| Dimensions(mm) | D:77±1 H:229±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |
The 24242190 is a deep bed pre filter cartridge built for compressed air systems requiring maximum contaminant holding capacity without frequent changeouts. Its extended 229 mm height — significantly taller than standard filters — packs more micro fiberglass depth media to capture solid particles down to 1 micron, including rust, scale, weld spatter, and bulk condensate. This element is designed for heavy duty applications where flow demand is high and maintenance access is limited.
Rated at 6.7 Nm³/min, the 24242190 supports entire plant branches, multiple high consumption laser cutters, or central air headers feeding dozens of tools. The taller media bed reduces face velocity, allowing finer particles to be trapped deeper within the fiber matrix. Clean pressure drop remains ≤0.01 bar, delivering 5-7% compressor energy savings over the 8000 hour service life. Despite its larger size, weight is only 0.45 kg for easy handling.
This element excels as a standalone pre filter for high volume industrial air or as a long-lasting first stage ahead of coalescing filters in very dusty environments. Typical placements include central compressed air rooms for large factories, high throughput laser cutting facilities with multiple shifts, electronics manufacturing plants with extensive SMT lines, and sandblasting operations running large nozzles continuously.
- 1 micron nominal rating – Captures rust, scale, weld spatter and bulk dust
- Deep bed micro fiberglass media – Extended height provides maximum dirt holding
- 67 Nm³ min flow rate – Highest capacity in this series, supports entire plant branches
- 001 bar pressure drop – Ultra low resistance maximizes energy savings
- 8000 hour service life – Fewer changeouts in high duty cycle environments
- Extended 229 mm height – Lower face velocity for deeper particle penetration
- Lightweight 0.45 kg – Easy to handle despite larger dimensions
- Buna-N seals – Reliable up to 2.0 MPa and 80°C
- Laser cutting high volume tables – Clean assist air for multiple cutting heads
- Electronics plant main compressed air lines – Pre filtration before distribution
- Sandblasting heavy duty rooms – Removes abrasive particles for large nozzles
- Central compressed air headers – First stage pre filter for entire factory
- Industrial high consumption networks – Protects all downstream pneumatic equipment
- 24 hour dispatch – Stock items ready for immediate shipment
- Low MOQ – One piece accepted for trial and evaluation
- OEM drawing service – Custom end caps, seals, or packaging available
- Factory direct pricing – Competitive for bulk orders of 1000+ pieces monthly
- Full compliance – CE, RoHS and ISO8573-1 certification provided
- Package: Plastic bag inside, Paper box outside.
- Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
- Shipment:
- By Air (Fedex/DHL)
- By Sea
