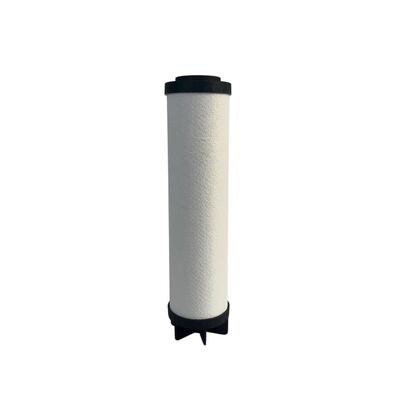

F810V Industrial Spare Parts CE RoHS ISO8573 Certified Cartridge
| MOQ: | 1 |
| Price: | 13USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
Detail Information
Place of Origin
Wuxi, Jiangsu, China
Brand Name
Ingersoll Rand V
Certification
ISO8573-1; CE; RoHS
Model Number
EXOMIST040068
Life Time:
8,000h
Pressure Loss:
≤0.011bar (5-7% Energy Saving)
Stock:
Main Models Shipped In 24h
Custom:
OEM Drawing Service
Applications:
Laser Cutting, Electronics, Sandblasting
Price:
Online Contact
Product Description
F810V Industrial Spare Parts CE RoHS ISO8573 Certified Cartridge
Product Specifications
| EXOMIST Model | EXOMIST040068 |
|---|---|
| Original Filter Brand | Ingersoll Rand V |
| Original Model9 | F810V |
| Precision / Residual oil amount | 0.01 μm /0.003 ppm |
| Processing capacity | 13.5 Nm³/min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Activated carbon |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 0.6kg |
| Size packaging(cm) | 35*9.5*9.5 24# |
| Dimensions(mm) | D:84±1 H:335±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |
Product Description
The F810V is a high flow replacement filter element engineered to match Ingersoll Rand VA F810V housings. It is built for large compressed air networks requiring superior removal of oil vapor, submicron particulates, and liquid condensate. Typical applications include high power laser cutting, automated electronics production, and industrial sandblasting lines.
This element features a dense activated carbon core that adsorbs oil vapor down to 0.003 ppm residual content while delivering 0.01 micron absolute particulate filtration. This performance meets ISO8573-1 Class 1 for both oil and particles, ensuring clean air for sensitive processes.
With a rated flow of 13.5 Nm³/min, the F810V supports demanding air consumption. The pressure loss is ≤0.01 bar, contributing to 5–7% energy savings over standard elements. The robust dimensions (84 mm diameter * 335 mm height) provide increased dirt holding capacity for extended service intervals of 8,000 hours.
Product Features
- High volume throughput – 13.5 Nm³/min for central air systems
- Ultra low oil carryover – 0.003 ppm protects downstream equipment
- Fine particle capture – 0.01 micron rating removes smoke and fumes
- Energy efficient operation – ≤0.01 bar pressure drop saves electricity
- Long lasting media – 8,000 hours between change outs
- Leak proof sealing – Buna N gaskets with engineering plastic end caps
Applications
- Heavy duty laser cutting – Keeps optics clean for consistent beam quality
- Electronics assembly lines – Prevents nozzle jams in pick and place machines
- Sandblasting booths – Eliminates moisture and oil from abrasive air
- Automotive painting – Provides oil free air for flawless finish
- Pharmaceutical granulation – Ensures sterile compressed air contact
Supply Advantages
- Ready to ship – Stocked items dispatched within 24 hours
- Sample friendly – MOQ only 1 piece for trial orders
- OEM service – Custom labels and packaging available
- Factory direct pricing – Competitive for bulk purchases up to 1000+ pieces monthly
- Full documentation – CE RoHS and ISO8573-1 test reports included
Packing & Delivery
- Package: Plastic bag inside, Paper box outside.
- Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
- Shipment:
- By Air (Fedex/DHL)
- By Sea
