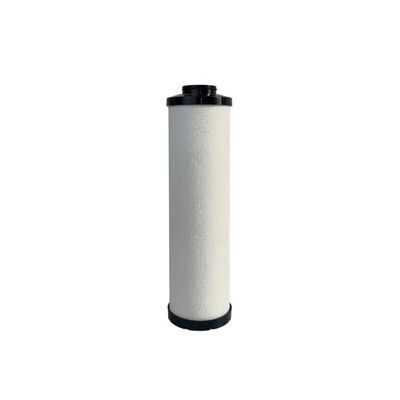

F540V Compressed Air Filtration Cartridge CE RoHS ISO8573-1 Certified
| MOQ: | 1 |
| Price: | 9USD/PCS |
| Standard Packaging: | Plastic bag-box-cartons/pallets or Custom options |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000+ pcs |
| EXOMIST Model | EXOMIST040066 |
|---|---|
| Original Filter Brand | Ingersoll Rand V |
| Original Model9 | F540V |
| Precision / Residual oil amount | 0.01 μm /0.003 ppm |
| Processing capacity | 9 Nm³/min |
| Working Temperature | 1.5 ~ 80℃ |
| Working Pressure | 0.1 ~ 2.0Mpa |
| Media | Activated carbon |
| End Caps | Engineering plastic |
| Seal | Buna-N |
| Weight (including packaging) | 0.4kg |
| Size packaging(cm) | 29.5*8.5*8.5 19# |
| Dimensions(mm) | D:75±1 H:269±2 |
| Country of Origin / HTS Code | CHINA / 8421999090 |
The F540V is a direct OEM replacement filter element engineered for Ingersoll Rand compressed air systems. It effectively eliminates oil vapor, submicron particles, and liquid condensate, ensuring downstream equipment operates reliably in critical environments like laser optics protection, electronic component assembly, and abrasive blasting.
This cartridge features high-density activated carbon bed that adsorbs hydrocarbon vapors, achieving a residual oil content of just 0.003 ppm and a particulate filtration rating of 0.01 micron. Such purity meets ISO8573-1 Class 1 requirements for oil and particles.
Designed for moderate to high flow demands, the F540V handles 9 Nm³/min at standard conditions. Its pressure drop is ≤0.01 bar, translating to 5–7% energy savings compared to standard elements. The robust construction with engineering plastic end caps and Buna-N seals ensures leak-free operation up to 2.0 MPa and 80°C.
-
0.01 μm absolute rating – Captures bacteria, smoke, and fine dust
-
0.003 ppm oil carryover – Ideal for oil-free air requirements
-
Activated carbon core – Removes taste and odor from compressed air
-
≤0.01 bar pressure drop – Minimizes energy loss and operating costs
-
8,000-hour service interval – Reduces maintenance frequency
-
100% compatibility – Form, fit, and function match VA-F540V
-
Laser cutting – Prevents lens contamination and power loss
-
Electronics SMT – Protects pick-and-place nozzles from sticky residues
-
Sandblasting cabinets – Avoids nozzle blockage and surface streaking
-
Food packaging – Maintains hygienic air contact surfaces
-
Pharmaceutical transfer – Ensures sterile air conveyance
-
Ready to ship – 24-hour dispatch for stocked models
-
Low MOQ – Start with 1 piece for qualification
-
OEM branding – Custom labeling and packaging available
-
Factory direct pricing – Competitive for 1000+ pcs monthly capacity
-
Global compliance – CE, RoHS, and ISO8573-1 test reports provided
- Package: Plastic bag inside, Paper box outside.
- Usually we pack elements by paper boxes and use export standard wooden boxes or pallets for heavy goods.
- Shipment:
- By Air (Fedex/DHL)
- By Sea
